Spiral Adapter - Stock 22R Carb To Weber Flange
Spiral Adapter - Stock 22R Carb To Weber Flange




Racer Net: $79.95

Part Number: 1033060
Qty:

Features

Features

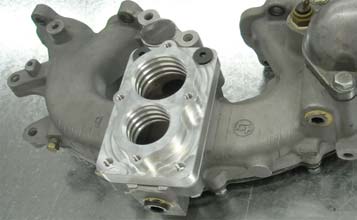

Spiral Adapter - Stock 22R Carb To Weber Manifold Flange

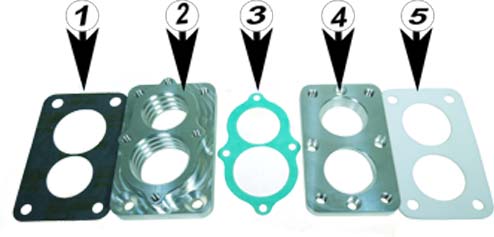

LC Engineering has designed a new adapter that will allow you to put the stock 22R carburetor on an Offenhauser manifold with the weber bolt pattern. This has become a very popular application for some of our customers running propane injection. The unique dyno-proven spiral bore of the LCE adapter causes the incoming air-charge to spin as it passes through the body. This beneficial air charge carries all the way into the combustion chamber which produces a super atomized mixture, which produces gains in mid-range power and overall efficiency. LC Engineering's in-house dyno showed gains of 5 horsepower and 6 Ft-Lbs. of torque! All adapter kits are manufactured from aircraft quality billet 6061-T6 aluminum. CNC-Machined to provide a better gasket seal and less vacuum leaks than the cheap Weber adapter. Each kit comes with all the necessary gaskets, hardware and precision brackets to maintain proper throttle and cruise control geometry. Kits can be installed in less than one hour, with no drilling or cutting required.



Contact our Tech Support Line for further information at 928-855-6341.

Check out www.LCEngineering.com for New Products, Tech Articles,
Specials & Monthly Newsletters!
Note: Images are for illustration purposes only. Images MAY NOT represent the product listed. Please contact Customer Service with any questions or concerns: 928-505-2501.
