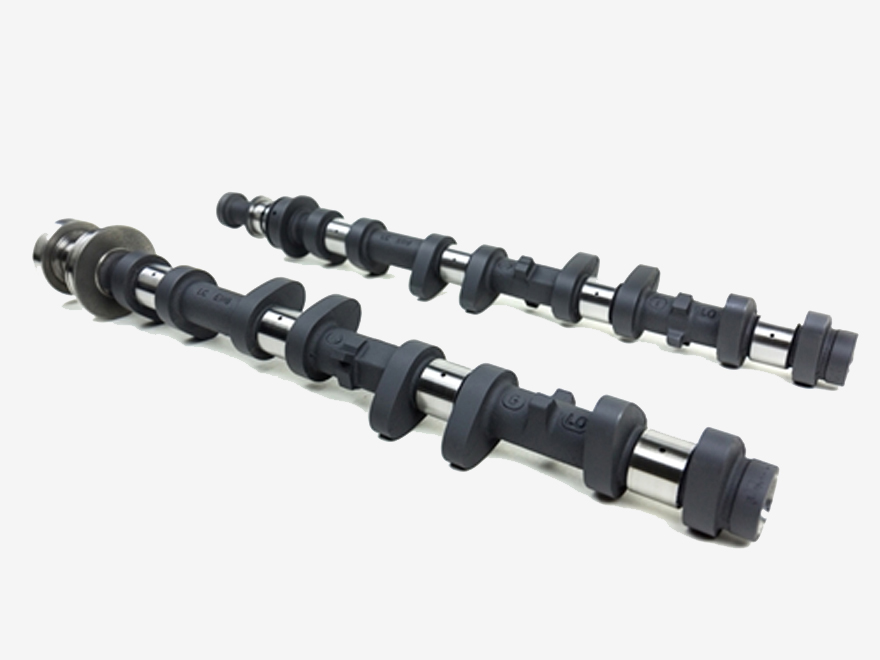

2RZ/3RZ Stage 3 Turbo Camshaft Set
LC Engineering has the largest selection of Toyota cams anywhere which means that no matter what application you have we can get the right cam for you. The 2RZ/3RZ Stage 3 Turbo Camshaft Set will give you a dramatic increase in upper RPM horsepower and torque! This cam set works very well in off-road racing, circle track, drag racing and even hot street applications. This cam set is designed to be used with a well built engine running 4-20 PSI.
|

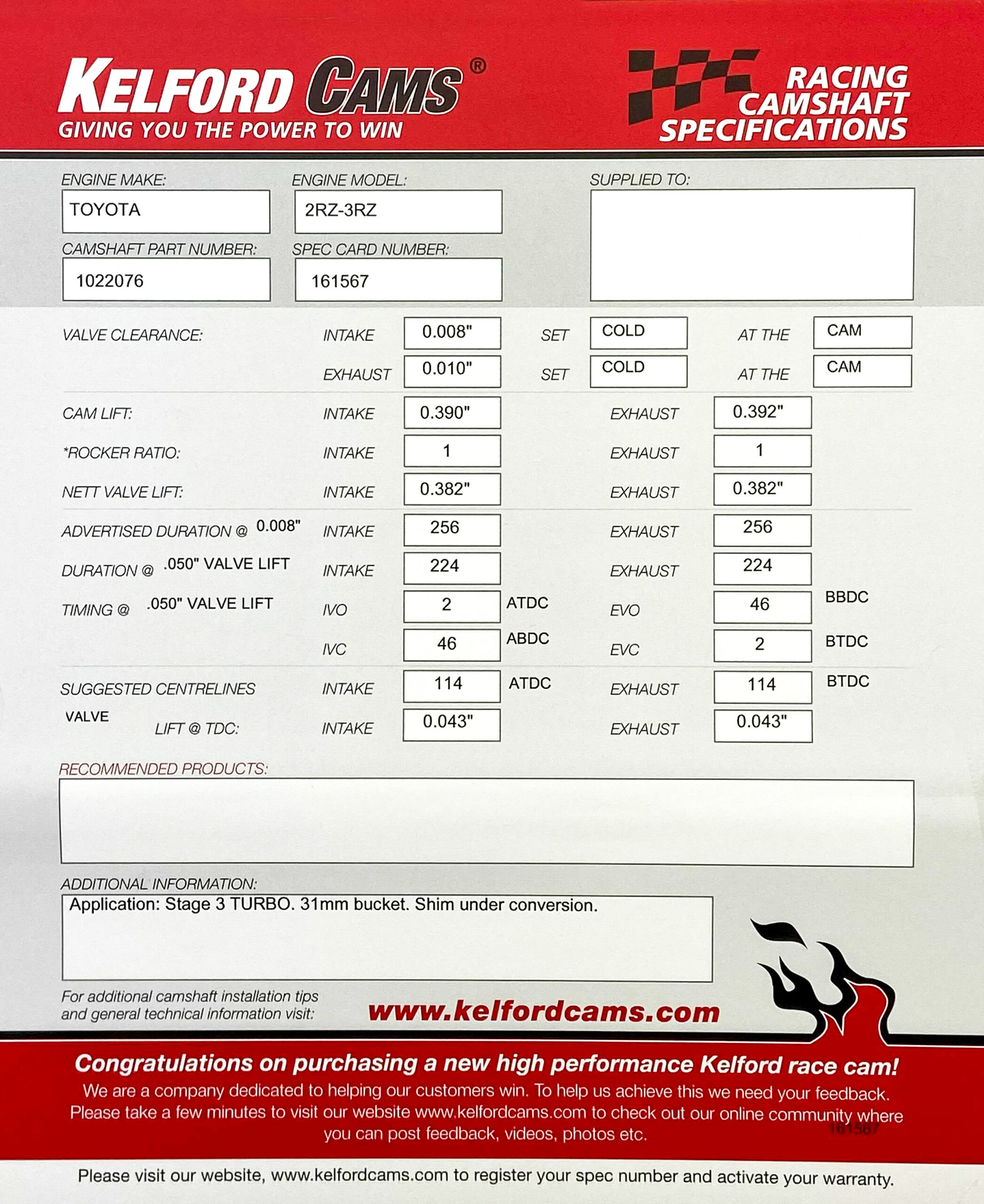

Stage 3 Turbo (3000-8500 rpm) Low Boost (4-20psi) |
||||||||
|
Advertised Duration @ 0.008" Valve |
Duration @ 0.020" Valve LiftDuration @ 0.020" Valve Lift |
Duration @ 0.050" Valve Lift |
Valve Lift |
Suggested Centrelines |
Lift @ TDC |
Valve Clearances |
Valve Timing @ 0.050" Valve Lift |
Base Circle |
|
Intake/Exhaust |
Intake/Exhaust |
Intake/Exhaust |
Intake/Exhaust |
Intake/Exhaust |
Intake/Exhaust |
Intake/Exhaust |
|
|
|
256 / 256 |
244 / 244 |
224 / 224 |
.382" / .382" |
114 / 114 |
0.043" / 0.043" |
0.008" / 0.010" |
2AT/46AB 46BB/2BT |
1.460" |
NOTE: These cams will require the use of an aftermarket computer system like the Haltech. They will also work in a carbureted application. Due to the larger lift, they will also require 31mm "shim under" style bucket instead of the stock "shim over" style.
- Haltech Elite 550 2RZ/3RZ Fuel Management System w/ Sub Harness Kit, see Part #: 1020223.
- Haltech Elite 550 2RZ/3RZ Fuel Management System w/ Complete Harness Kit, see Part #: 1020224.
- Haltech Elite 1500 2RZ/3RZ Fuel Management System w/ Sub Harness Kit, see Part #: 1020208.
- Haltech Elite 1500 2RZ/3RZ Fuel Management System w/ Complete Harness Kit, see Part #: 1020209.
This product should not be used in a manner that violates Federal EPA Laws.
Check out LCEngineering.com for New Products, Tech Articles, Specials & Monthly Newsletters!
| Note: Images are for illustration purposes only. Images may not represent the product listed. Please contact customer service with any questions or concerns: 1-928-505-2501. |
- 1995.5-2004 2RZ 2.4L Engines
- 1995.5-2004 3RZ 2.7L Engines
