Stage 5
(Turbo)

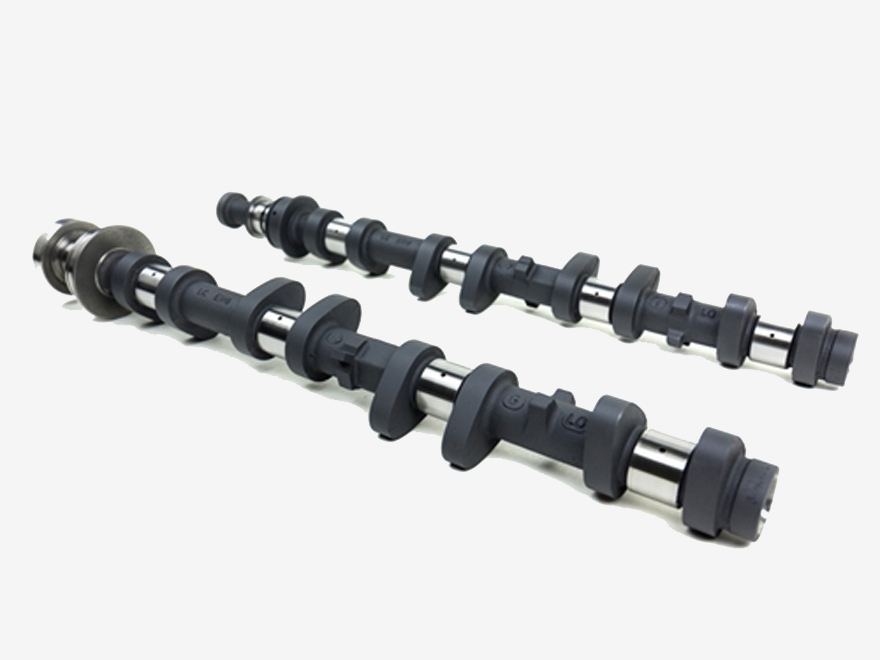

LC Engineering has the largest selection of Toyota cams anywhere which means that no matter what application you have we can get the right cam for you. With power potential over 1,500hp, the 2RZ/3RZ Stage 5 Turbo Camshaft Set is not for the weak! These cams have a huge lift and make huge power! These cams are designed to be used in drag racing under high boost (20-40psi) applications.
|

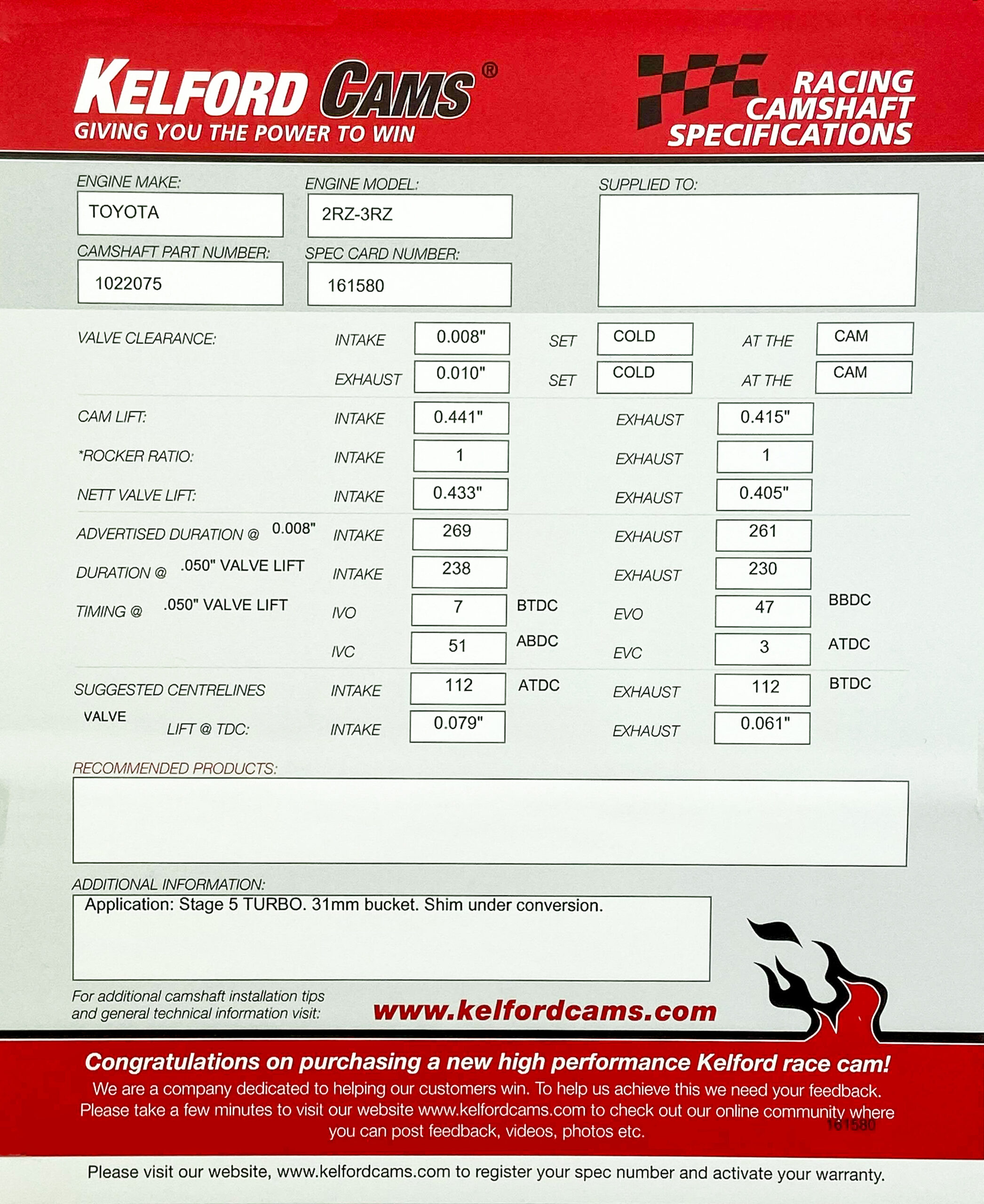

Stage 5 Turbo (4500-9500 rpm) High Boost (20-40psi)
|
||||||||
|
Advertised Duration @ 0.008" Valve |
Duration @ 0.020" Valve LiftDuration @ 0.020" Valve Lift |
Duration @ 0.050" Valve Lift |
Valve Lift |
Suggested Centrelines |
Lift @ TDC |
Valve Clearances |
Valve Timing @ 0.050" Valve Lift |
Base Circle |
|
Intake/Exhaust |
Intake/Exhaust |
Intake/Exhaust |
Intake/Exhaust |
Intake/Exhaust |
Intake/Exhaust |
Intake/Exhaust |
|
|
|
269 / 261 |
257 / 249 |
238 / 230 |
.433" / .405" |
112 / 112 |
0.079" / 0.061" |
0.008" / 0.010" |
7BT/51AB 47BB/3AT |
1.460" |
NOTE: These cams will require the use of an aftermarket computer system like the Haltech. Due to the larger lift, they will also require 31mm "shim under" style bucket instead of the stock "shim over" style. These camshafts will work with carbureted applications.
- Haltech Elite 550 2RZ/3RZ Fuel Management System w/ Sub Harness Kit, see Part #: 1020223.
- Haltech Elite 550 2RZ/3RZ Fuel Management System w/ Complete Harness Kit, see Part #: 1020224.
- Haltech Elite 1500 2RZ/3RZ Fuel Management System w/ Sub Harness Kit, see Part #: 1020208.
- Haltech Elite 1500 2RZ/3RZ Fuel Management System w/ Complete Harness Kit, see Part #: 1020209.
| Note: Images are for illustration purposes only. Images may not represent the product listed. Please contact customer service with any questions or concerns: 1-928-505-2501. |
- 1995.5-2004 2RZ 2.4L Engines
- 1995.5-2004 3RZ 2.7L Engines
