Rock Defense Rear Bumper Support Kit

6 Lug 4wd Only

This product is for the hardcore rock crawlers that need a little extra support for their rear bumper. This support welds to the bumper and can be welded or bolted to the frame for easy removal of the bumper.

NOTE: This product is shipped unpainted and lightly oiled to prevent rusting. Will not work on Pickups.



Note: Images are for illustration purposes only. Images may not represent the product listed. Please contact customer service with any questions or concerns: 1-928-505-2501.

by Trail-Gear
  • 1984-1989 4Runner (4WD)

To open a printable PDF version of this instruction CLICK HERE




Installation Instructions:

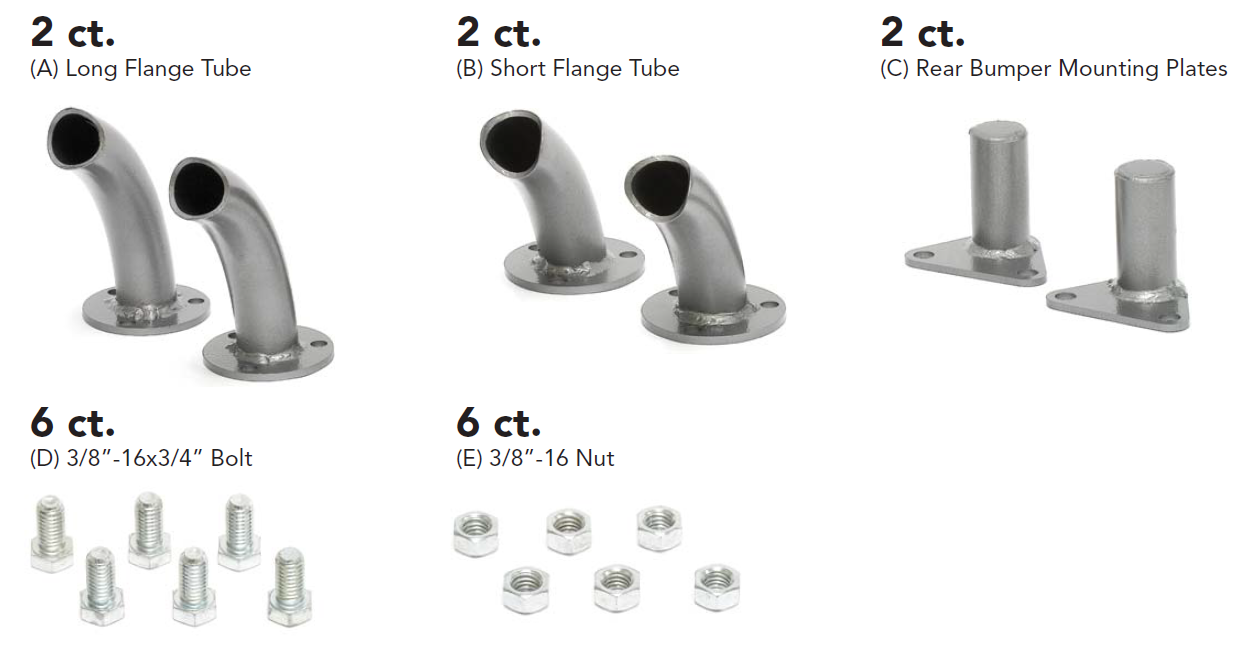

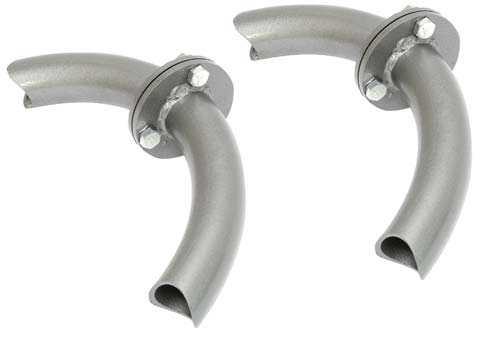

1. Bolt long flange tubes (A) to the short flange tubes (B) using the provided nuts (E) and bolts (D).

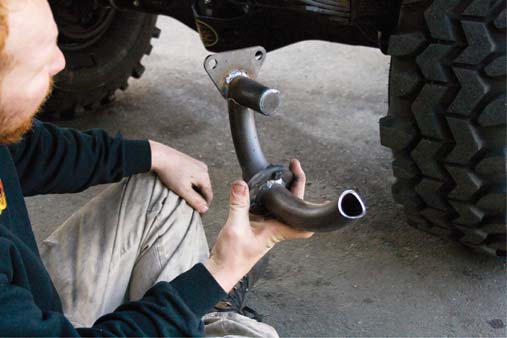

2. Place the mounting plates (C) on top of the short flange tubes (B) to locate position of flange tube assembly placement on the bumper.

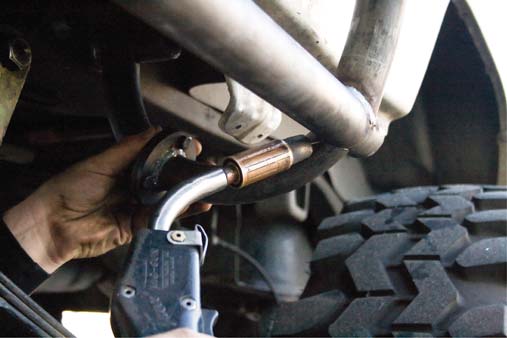

3. Tack weld the flange tube assembly to the bumper. Make sure the long flange tube (A) is contacting the bumper.

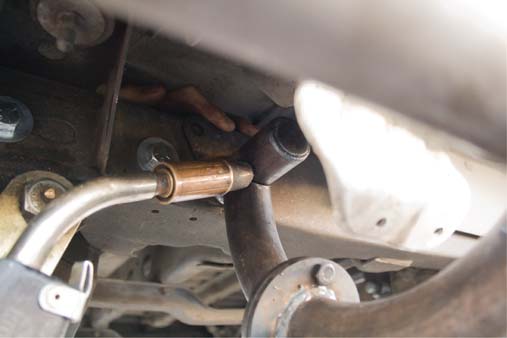

4. Adjust mounting plate (C) along the flange tube assembly until it is flush against chassis. Tack weld the flange tube assembly to the mounting plate (C).



5. Tack weld the mounting plate (C) onto the chassis or use provided holes for bolt on installation.



6. Ensure correct positioning and finish welding pieces together.



Additional Photos:

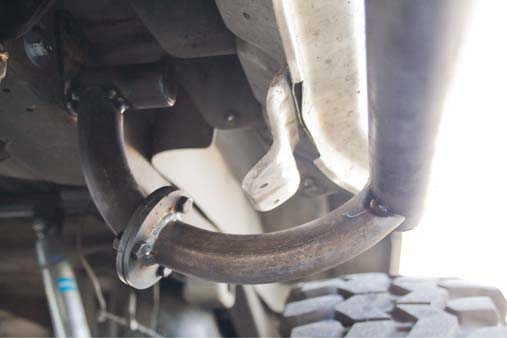

Position of the rear bumper frame support along the sides of the bumper.



Additional Photos:

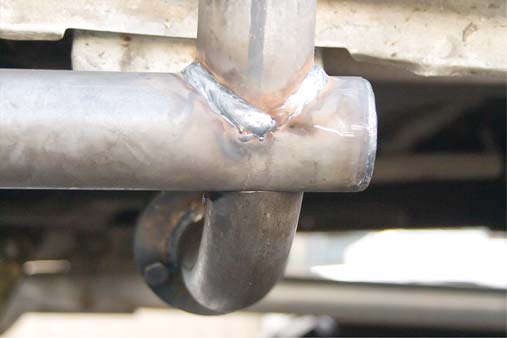

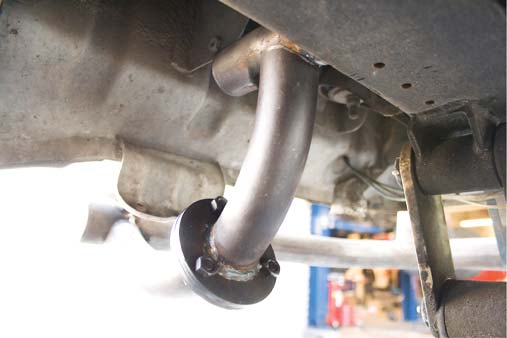

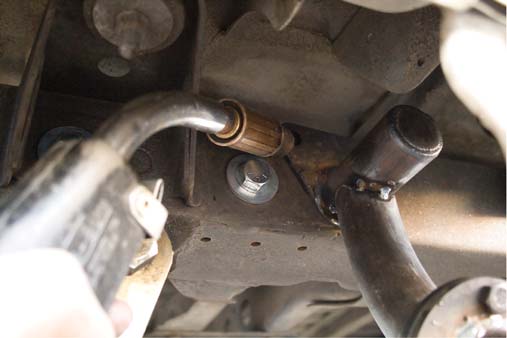

Positioned and tack welded before final welding begins.
