Oil Pan Kit
(3RZ Tacoma w/ Solid Axle Swap)

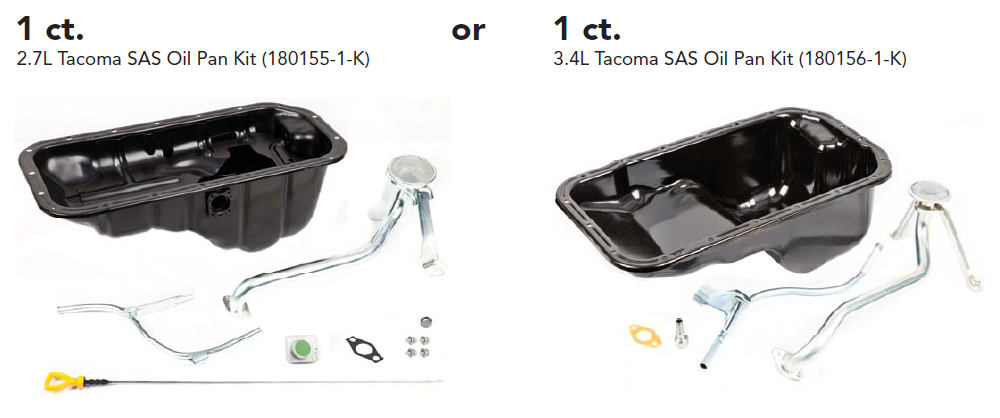

When installing a solid axle swap kit on your 95-04 Tacoma, you will notice that your stock oil pan will interfere with the new solid axle. We have solved this problem with a Rear Sump T100 oil pan kit. This kit comes with a oil pan, pick up tube with gasket, dipstick w/tube, and the freeze plug to plug the old dipstick hole to relocate the tube (only needed on some models). We also include the oil sender block plate (T100 pans have an unused oil level sender port on the side of the pan) and hardware. This kit comes with all the parts you need to convert your 3RZ engine over to the T100 pan so you can get the maximum flex out of your solid axle suspension without worrying about hitting the oil pan.
Reference OEM Toyota Part #'s:
- Oil Pick Up Tube Gasket: 15147-75020
- Oil Pick Up Tube: 15104-75020
- Oil Dipstick: 15301-75020
- Oil Dipstick Tube: 11409-75020
- Oil Pan: 12101-75060
| Note: Images are for illustration purposes only. Images may not represent the product listed. Please contact customer service with any questions or concerns: 1-928-505-2501. |
- 3RZ Tacoma w/ Solid Axle Swap
To open a printable PDF version of this instruction
CLICK HERE
Tools Needed:
- ⅜" Ratchet & extensions
- 8mm, 10mm, 12mm, 14mm Sockets
- Cutoff Wheel
- Paint Pen
- Hammer
Installation Notes:
-
1. Read all instructions completely and carefully before you begin.
2. Check to make sure the kit is complete and that no parts are missing. If anything is missing, please contact Trail-Gear at (559) 252-4950.
3. Park vehicle on a clean, dry, at, level surface and block the tires so the vehicle can not roll in either direction.
2.7L Installation Instructions: (See below for 3.4L)
1. Remove the oil pan.

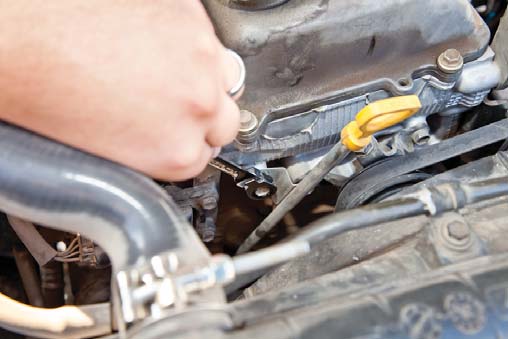

2. Remove dipstick bracket hardware.

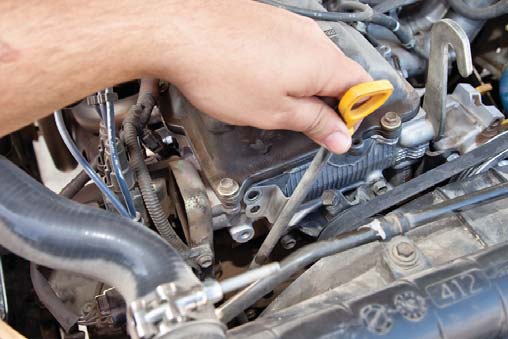

3. Remove the stock dipstick.

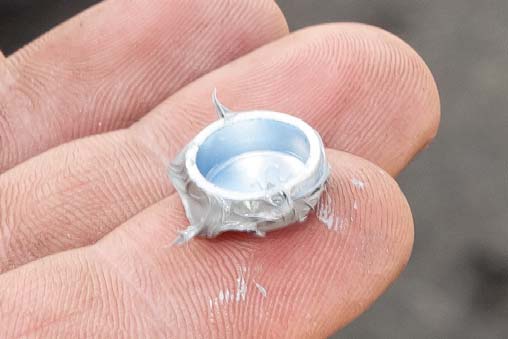

4. Apply Ultra Grey to bottom of freeze plug.
5. Place freeze plug in stock dipstick hole.

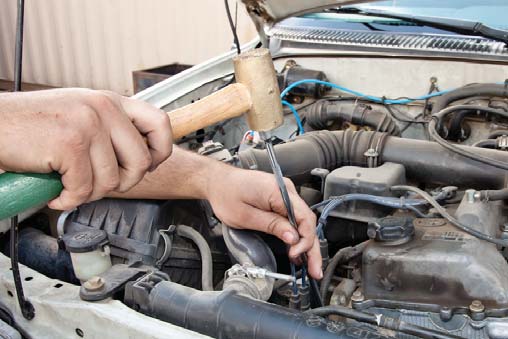

6. Lightly tap freeze plug to secure it into place.

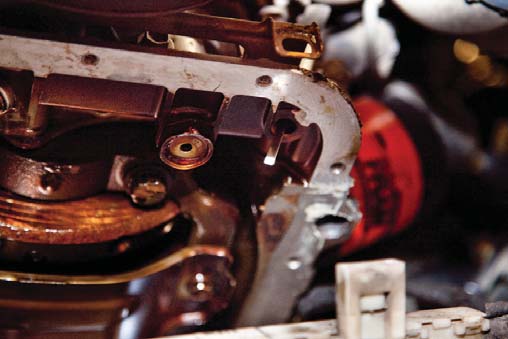

7. Locate the small freeze plug approximately 2" behind motor mount.

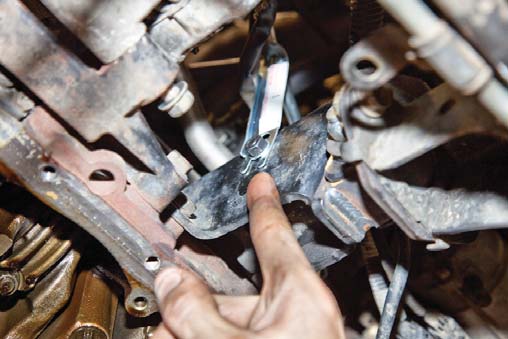

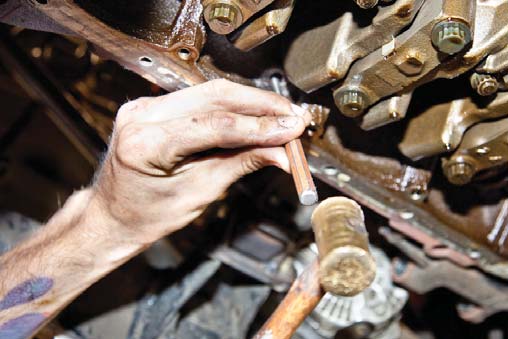

8. Using a punch, remove the freeze plug.

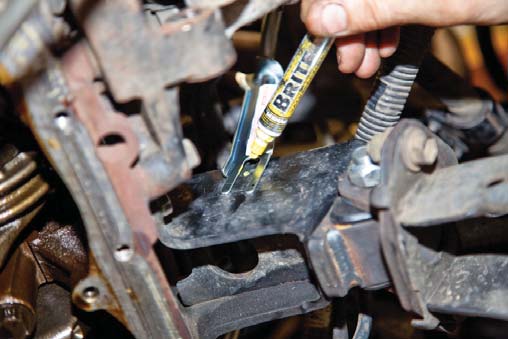

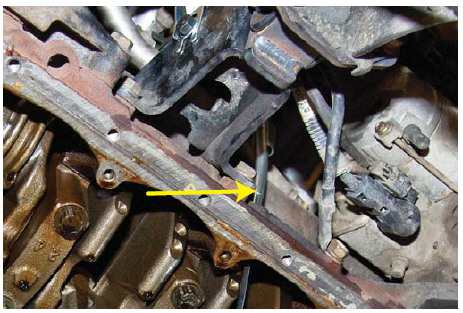

9. Install the new dipstick tube into the block using ultra grey at the mating surface.

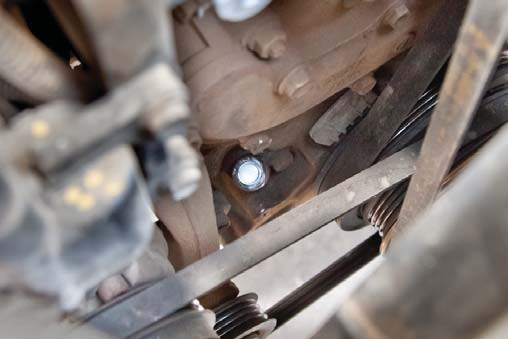

10. Mark and drill a hole in the motor mount bracket to mount the dipstick tube. We drilled a 5/16" hole and used an 8mm bolt.
11. Fasten the dipstick tube to the motor mount.

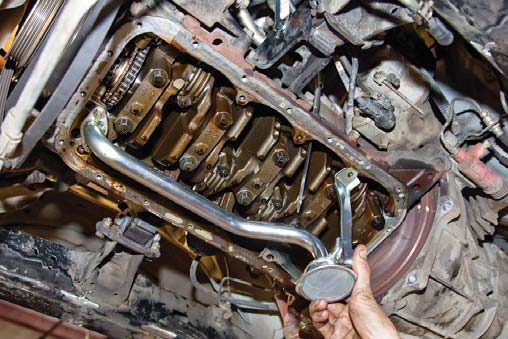

12. Remove the stock strainer and install the new one.

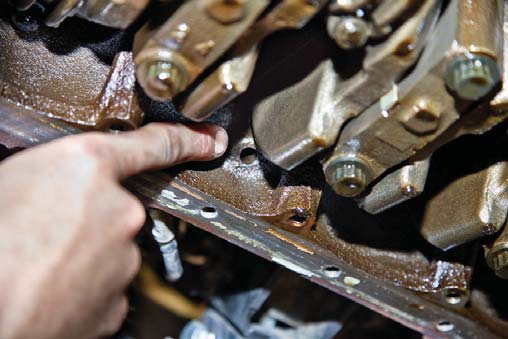

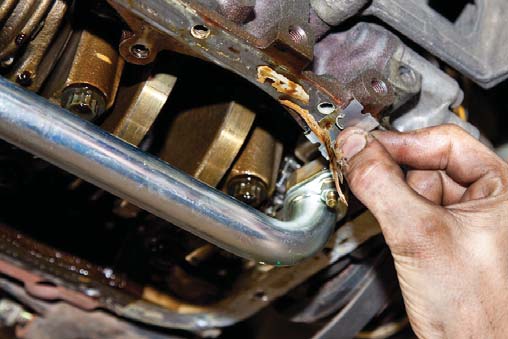

13. Using a razor, clean the oil pan mating surface on the block.

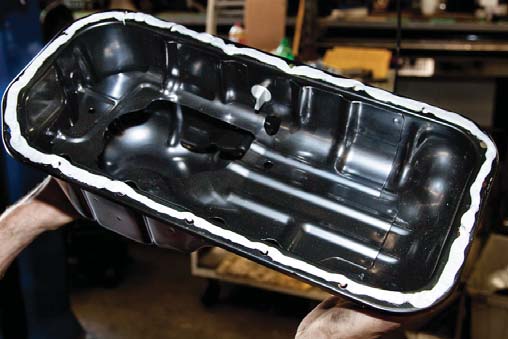

14. Apply a bead of ultra grey to the oil pan mating surface.

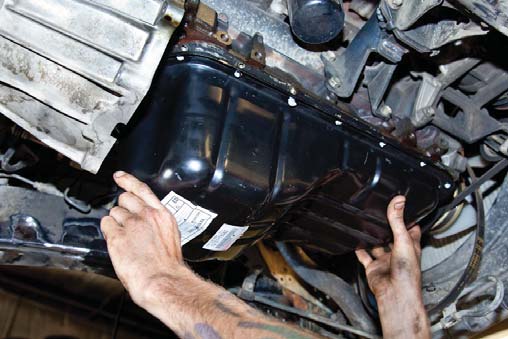

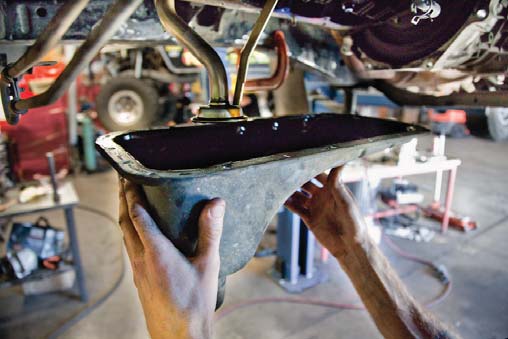

15. Install the new oil pan. The strainer now sits towards the back of the truck.

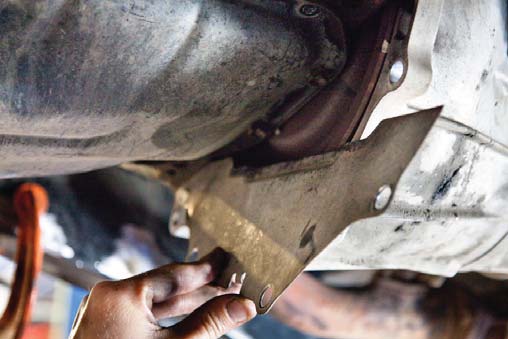

16. Re-install the dust shield.

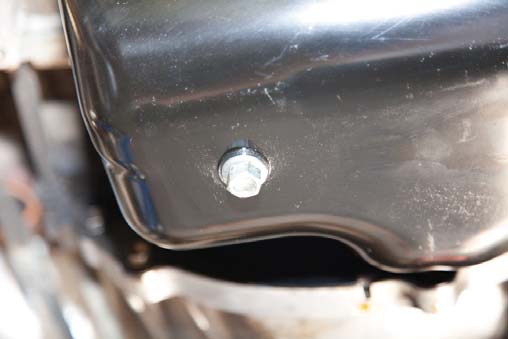

17. Install the drain plug with gasket.
3.4L Installation Instructions:
1. Remove dust shield.
2. Remove the oil pan.
3. Remove the stock strainer and replace it with the new one.
4. Using a razor, clean the oil pan mating surface on the block.

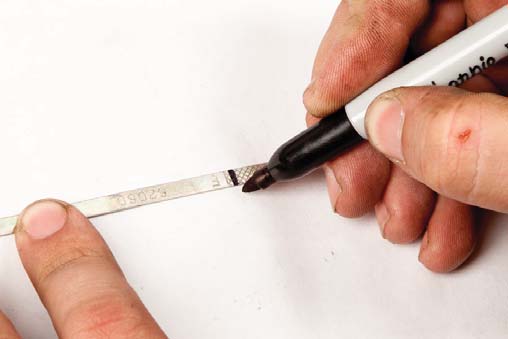

5. Mark the stock dipstick 1/8" below the full line and cut off the excess. The stock full level on the dipstick will still be used and 6 1/2 quarts of oil are used.
6. Re-install the dip stick into the block.
7. Apply a bead of ultra grey to the oil pan mating surface.
8. Install the new oil pan. The strainer now sits towards the back of the truck.

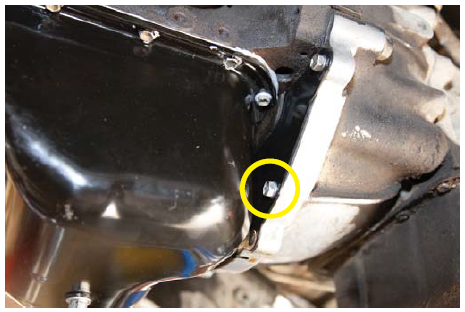

9. Re-install the dust shield. The circled bolt will need to be shortened by 3/8".
10. Install the drain plug with gasket.
