Throttle Body Spacer Kit
Our throttle body spacers feature a unique spiral bore that agitates the incoming air to promote better atomization of the fuel molecules, resulting in a more complete burn in the combustion chamber. These kits include a billet aluminum spiral bore spacer, throttle cable bracket relocation plate, and all the hardware needed to install the kit. These kits also include one of LC Engineering's exclusive Teflon throttle body gaskets to reduce the heat transfer from the intake manifold. These kits work great when used in conjunction with our high-flow intake tube and filter kit. Spacers and adapters are hard anodized black for long lasting good looks and durability.
Specifications:
- Spacer Thickness: 1"
- Gain: 5 HP
- Opening Size: 63.5mm (2.500")
NOTE: Not for street use in California.
| Note: Images are for illustration purposes only. Images may not represent the product listed. Please contact customer service with any questions or concerns: 1-928-505-2501. |
- 1995.5-2004 2RZ 2.4L Engines
- 1995.5-2004 3RZ 2.7L Engines
To open a printable PDF version of this instruction
CLICK HERE

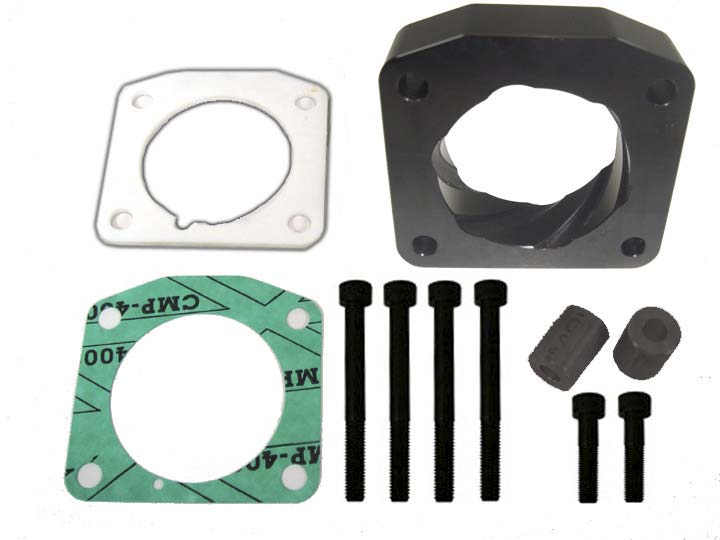

Kit Includes:
- (1) 1" Throttle Body spacer
- (1) Teflon Gasket
- (1) Paper Gasket
- (4) M8x1.25 Hex Head Bolts 60mm Long
- (2) M8x1.25 Hex Head Bolts 35mm Long
- (2) ¾"x 1" Intake Tube Spacer
- (6) M8 Flat Washer
Installation:
-
1. Label and remove all vacuum hoses on throttle body.
2. Remove intake tube assembly.
3. Remove 2 mounting nuts and 2 mounting bolts from throttle body.
4. Remove throttle body from vehicle.
5. Remove mounting studs from intake.
6. Remove gasket and clean surface.
7. Install new spacer with Teflon gasket (the white one) between spacer and intake manifold.
8. Re-install throttle body using the 4 supplied 60mm bolts.
9. Re-install intake tube. Use ¾"x1" spacers and supplied 35mm bolts on bottom of canister.
10. Re-install vacuum lines back onto the throttle body.
NOTE: The small hose on the air intake will need to be routed around the passenger side of the throttle cable bracket after spacer install. Depending on space requirements, aftermarket intake tubes may require additional modifications (tube may need to be cut shorter).
