Creepy Twin T-Case Shifter
(Top Shift)

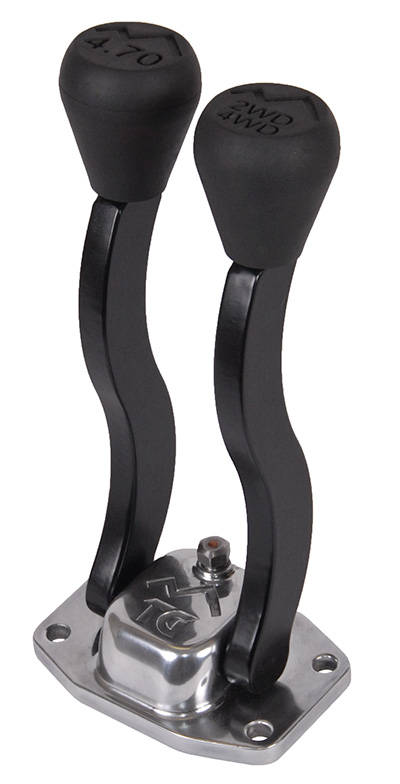

Twin stick shifters allow independent control of the high/low and 2wd/4wd sections of your Toyota gear driven transfer case. This allows access to low range 2wd operation. It also allows you to shift in and out of 4wd while driving on the trail without the need to stop. Access to 2wd low range allows easier steering and less driveline binding when you are traveling between obstacles on the trail. Twin shifters come fully assembled and ready to install. Before installing the Creepy Twin shifter, it is necessary to remove the interlock pin from the transfer case to allow independent operation of the shift rails. Once the pin has been removed, the Twin Shifter can be bolted on to the top of the transfer case.
Shifter bases are made from polished cast aluminum. Shifter keys are made from heat treated 1020 steel. The internal cross pin is made from heat treated chromoly steel. A splash resistant oil breather is installed on the top of the shifter to reduce oil loss in a rollover while still allowing the transfer case to vent as needed. Each lever is sealed with an o-ring for long, trouble free operation. Twin Stick shifters are shipped with one 4.70 and one 2wd/4wd shift knob. A new cork shifter gasket is included with the kit. Reuse stock shifter base mounting bolt to attach to transfer case.
NOTE: In order to make the forward shift shifter work, some minor modifications are required.
This product should not be used in a manner that violates Federal EPA Laws.
Check out LCEngineering.com for New Products, Tech Articles, Specials & Monthly Newsletters!
| Note: Images are for illustration purposes only. Images may not represent the product listed. Please contact customer service with any questions or concerns: 1-928-505-2501. |
by Trail-Gear
- W56 C or D model transmissions with a single transfer case
- Stock chain driven V6 transfer case
- Rotated dual case adapters
- Single transfer case applications with combined tranny and t-case shifter base

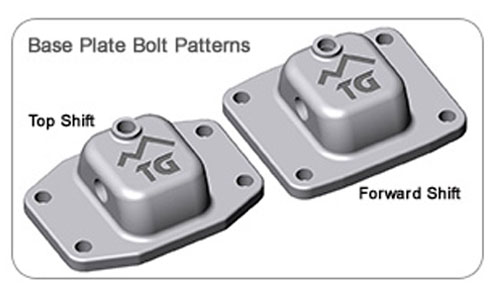

- All Top shift style transfer cases in single or dual configuration
- All rear transfer cases in dual crawler configurations
- All Turbo transmissions in single or dual configurations
- Single transfer case applications with separate transfer case shifter base
Twin stick shifters will NOT work with the following:
Twin stick shifters WILL work with the following gear-driven pickup cases:
To open a printable PDF version of this instruction
CLICK HERE
Kit Includes:
- (2) Twin Stick O-Ring
- (1) Twin Stick Shift Base
- (2) Twin Stick Shift Key
- (1) Twin Stick Lever L
- (1) Twin Stick Lever R
- (2) Twin Stick Spring Pin
- (1) Twin Stick Vent
- (1) Shift Knob 2WD/4WD
- (1) Shift Knob, 4.70
Tools Needed:
- 12mm Ratchet
- 6mm Allen Wrench
- Long Pin Punch
- Parts Magnet
- Hammer
- Needle Nose Pliers
Installation Instructions:

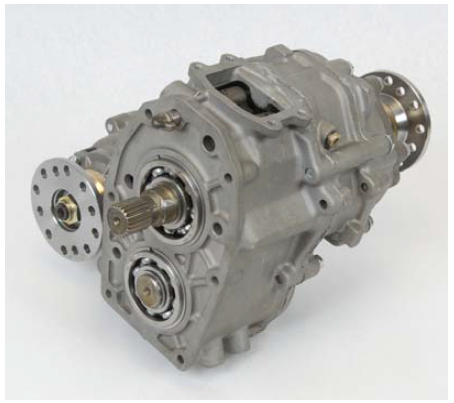

1. Remove the transfer case from the vehicle. NOTE: If you have a dual case, it will need to be separated from the front case.
1. Continued - Place the case on a bench and remove the four bolts on the shifter with the base and gasket using a 12mm ratchet.

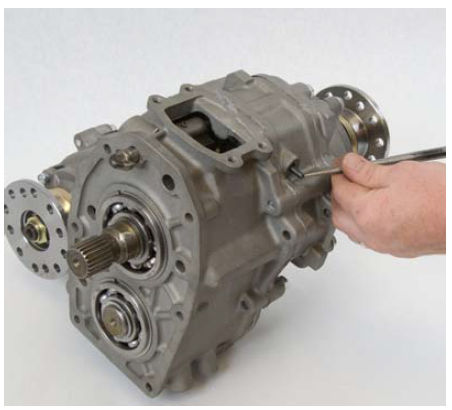

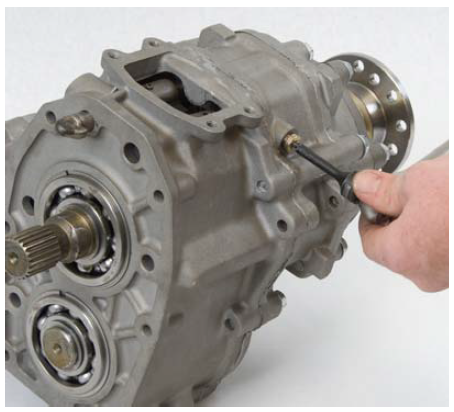

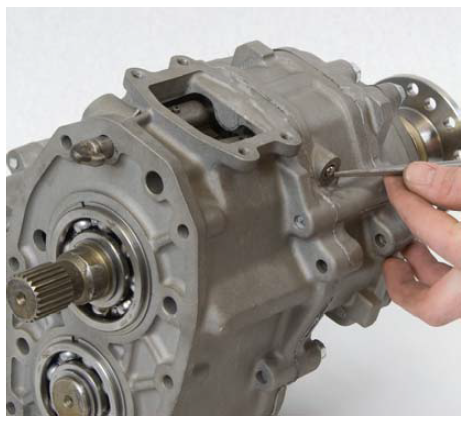

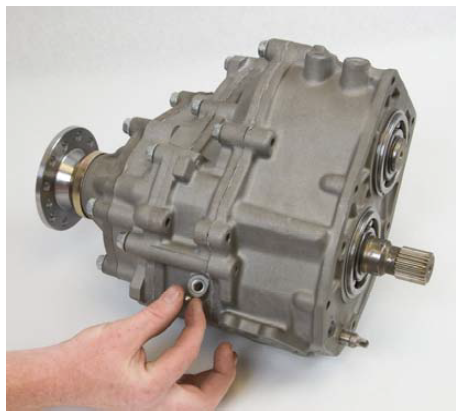

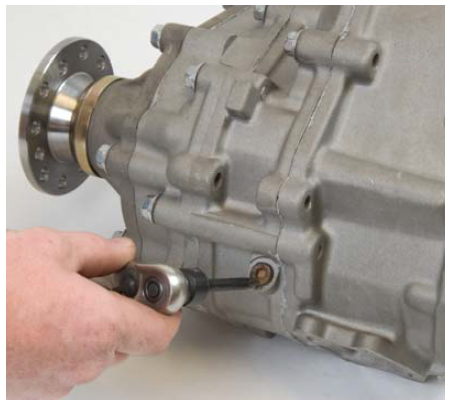

2. Remove the detent plug on the drivers side of the t-case using a 6mm allen wrench.

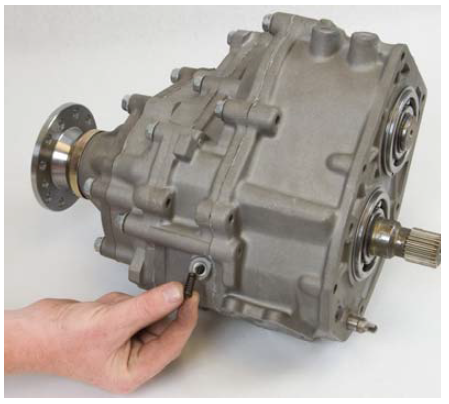

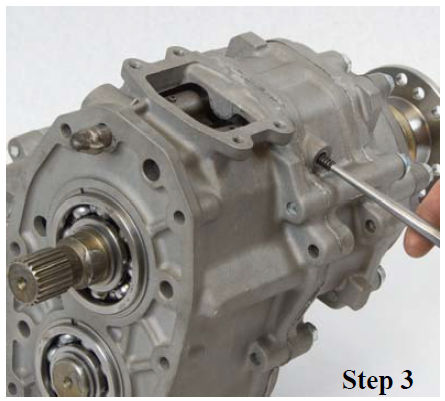

3. Using a magnetized long pin punch, remove the detent spring. If a magnetized pin punch is not available, roll the t-case over for the spring to slide out of the hole.
4. Using a magnetized long pin punch remove the detent ball.

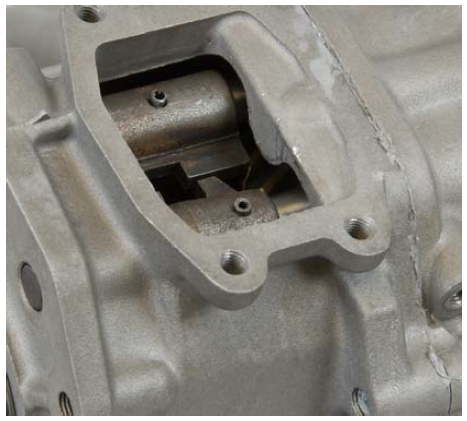

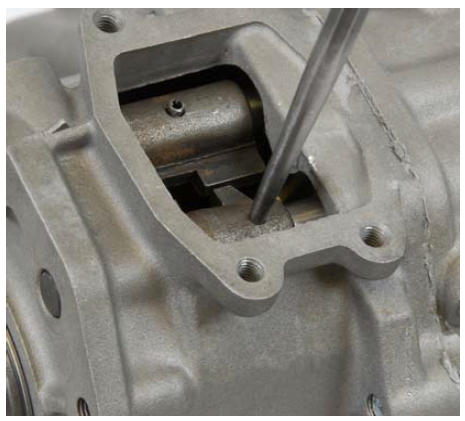

5. Slide the drivers side shift rail forward until it stops. Insert a magnet under the shift rail to catch the roll pin.
6. With the magnet in position under the shift rail, tap out the roll pin with a punch.

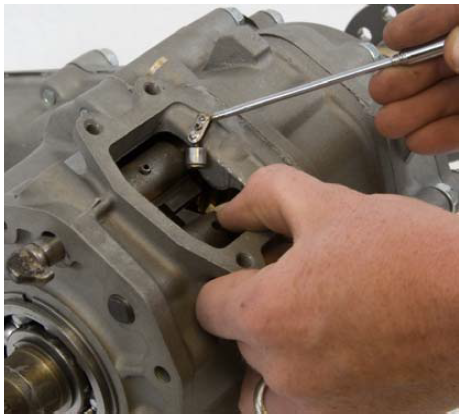

7. Using needle nose pliers, remove the roll pin from the magnet. If the pin falls into the case, roll the case over and remove it.

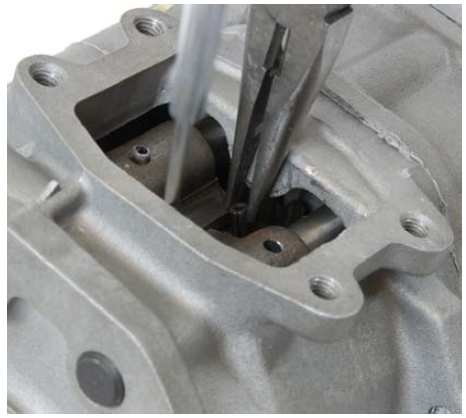

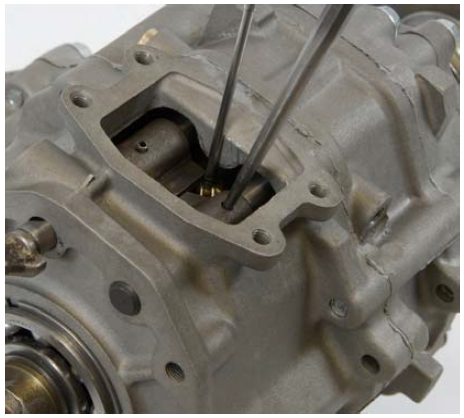

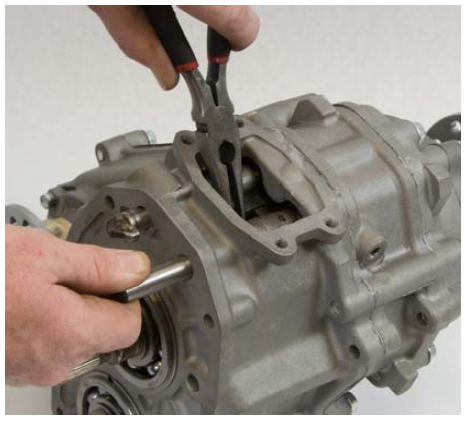

8. Hold the shift fork in place with needle nose pliers. With a long pin punch, start sliding the shift rail out.

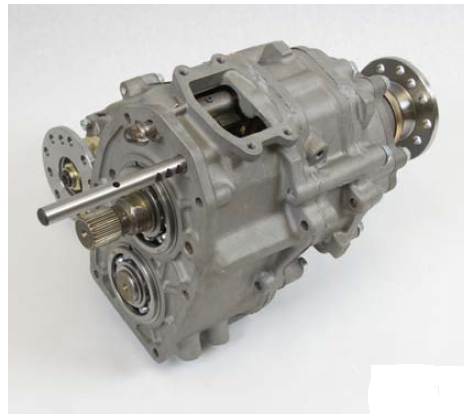

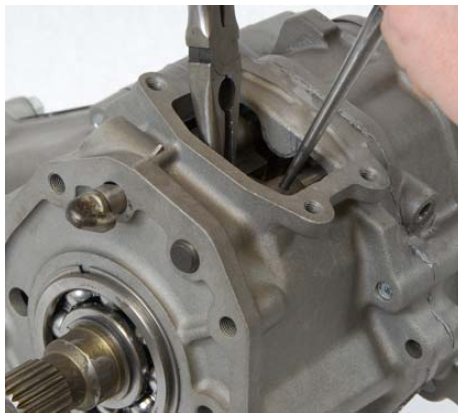

9. Still holding the needle nose pliers in place slide the shift rail out completely.
10. Using a magnetized long pin punch remove the interlock pin from the transfer case.
10. Continued - When reinstalling, note the orientation of the shift rail. If the shift rail is inserted into the t-case incorrectly, the t-case will not shift properly. The three grooves on the shift rail should be facing out with the one groove on the opposite side facing in.

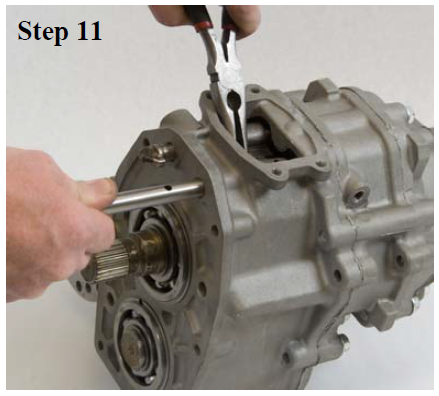

11. Using the needle nose pliers, hold the shift fork in place while sliding the shift rail into position. Be sure to maintain the proper orientation of the shift rail (see note above).
12. Align the shift rail hole and the shift fork hole with each other using a long pin punch.

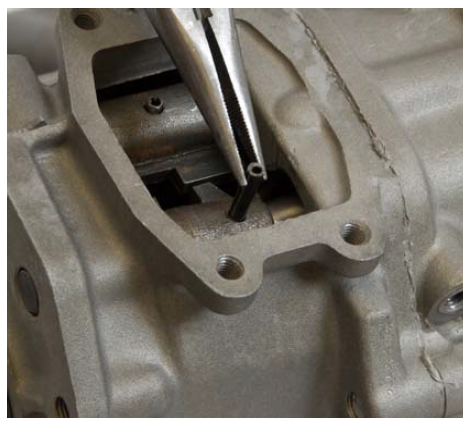

13. Once aligned, remove the pin punch and insert the roll pin using the needle nose pliers.
14. Firmly tap in the roll pin until it is nearly flush.
15. Turn the t-case over. Drop the detent ball into the hole.
16. Drop the detent ball spring into the same hole.
17. Insert the detent plug into the hole using a 6mm allen wrench. Turn the t-case back over.

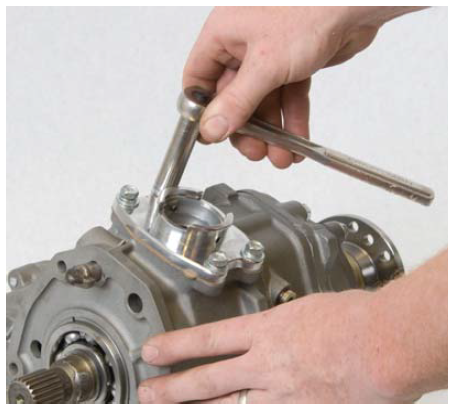

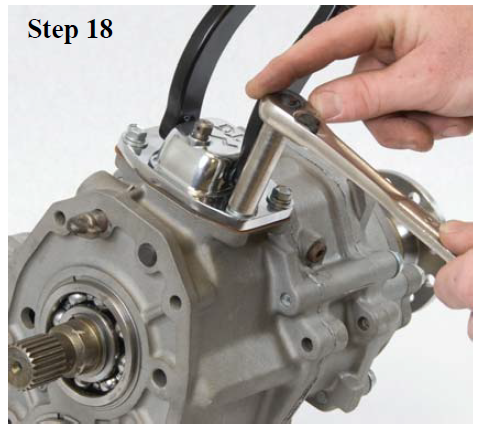

18. Using the original shifter base bolts, install the new gasket and twin shifter on the top of the t-case. Torque the bolts to 8-11 ft./lbs. with a 12mm ratchet.
NOTE: When re-installing the t-case into the truck, make sure to sufficiently clearance the transmission tunnel, seats, or anything else that may come in contact with the shifter. Failure to do so may result in contact with the shift levers and can cause the shifter base to crack or break.
Installation Notes:
These instructions are designed as a general installation guide. Installation of many Trail-Gear Products require specialized skills such as metal fabrication, welding and mechanical trouble shooting. If you have any questions or are unsure about how to proceed, please contact our shop at (559) 252-4950 or seek help from a competent fabricator. Using fabrication tools such as welders, torches and grinders can cause serious bodily harm and death. Please operate equipment carefully and observe proper safety procedures.
Rock crawling and off-road driving are inherently dangerous activities. Some modifications will adversely affect the on-road handling characteristics of your vehicle. All products sold by Trail-Gear Inc are sold for off road use only. Any other use or application is the responsibility of the purchaser and/or user. Some modifications and installation of certain aftermarket parts may under certain circumstances void your original dealer warranty. Modification of your vehicle may create dangerous conditions, which could cause rollovers resulting in serious bodily injury or death. Buyers and users of these products hereby expressly assume all risks associated with any such modifications and use.
