LCE Street Header Kit 3VZ 1988-1995 ONLY 4WD Pickup & 4Runner (No Crossover)
Street Header Kit 3VZ 1988-1995 4x4 Only

Our Price: $755.95

Quantity in Stock:(Backordered)

Part Number: 1041059
Qty:

Details Fitment Instructions


3VZ Street Header Kit

(w/o Crossover)

Hands down the best 3.0L performance headers on the market! These headers are constructed using all stainless steel tubing, 16 gauge .065 wall, and 1/2" thick flanges. The collectors are 409 Stainless Steel made in house with 2 1/4" opening, for the strongest most durable headers you can buy. These headers are for 4WD applications only and are a direct fit application. Like all of LC Engineering's headers, these are ceramic coated to reduce heat and improve appearance.

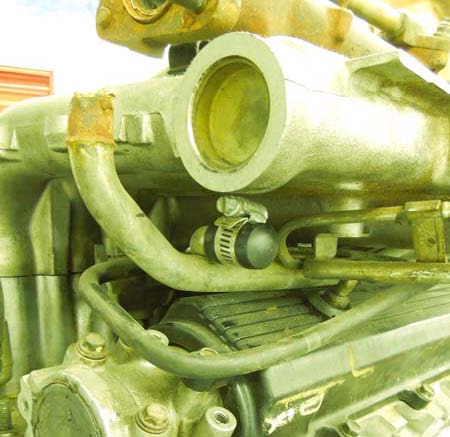

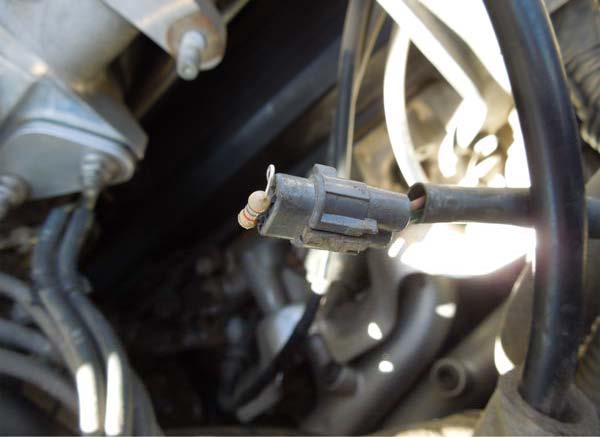

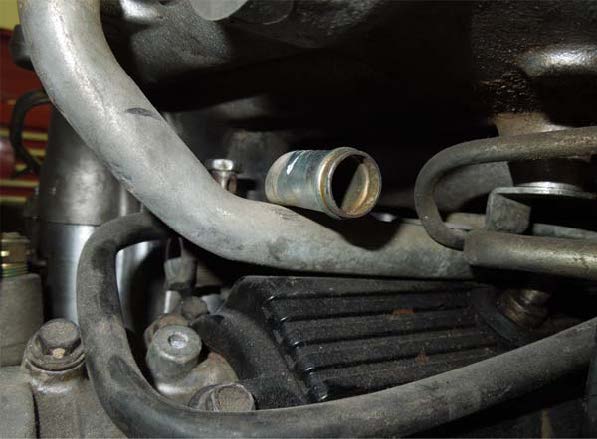

The 3VZ header kit blocks off the EGR system as well as air injection. The kit will include the parts to block off both as well as a resistor selection to prevent check engine light. Some resistor changes may be necessary. The headers will end near the bell housing and exhaust will need to be made from there on.

Kit Includes:

  • Headers
  • Gaskets and hardware
  • EGR block off kit

Optional: Header stud kit, see Part #: 1045031.


This product should not be used in a manner that violates Federal EPA Laws.


NOTE: Not C.A.R.B. approved. For off-road use only in California. It does not have EGR provisions or Air Injection. Will not fit 2WD Trucks. There are some potential fitment issues to be aware of. From the factory, Toyota used two different lengths clutch forks. If you have the longer version it will need to be trimmed for proper clearance. There are brake and fuel lines on the passenger side that may need to be carefully adjusted to allow for more clearance away from the exhaust system. LC Engineering does NOT recommend wrapping our headers with any sort of exhaust wrap. Doing so will increase the likelihood of a premature failure of the header, as it holds contaminants to the exhaust tubing and increases the chances of corrosion. Exhaust wraps will void any and all warranty claims.


Contact our Tech Support Line for further information at 928-855-6341.

Check out LCEngineering.com for New Products, Tech Articles, Specials & Monthly Newsletters!

Note: Images are for illustration purposes only. Images may not represent the product listed. Please contact customer service with any questions or concerns: 1-928-505-2501.


Suggested with your install...
Header Stud Set - 5VZ/3VZ
Our Price: $29.07

Add
Header Stud Set - 5VZ/3VZ

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 2 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 Header July 28, 2023
Reviewer: David P from Bradenton, FL United States
Headers look great.

Was this review helpful to you?

  4 of 4 people found the following review helpful:

5 of 5 Amazing July 1, 2019
Reviewer: Ryan O'Dell from Tacoma, WA United States
They look really well made. They even ground down the edges of everything to make them smooth and not sharp. I thought the stud kit was included but I misread it

Was this review helpful to you?
