First: Distributor or Waste Spark?

The 2RZ changed ignition systems partway through production, and almost every part here depends on which one you have:

  • 1995-1997 — distributor. A conventional cap and rotor.
  • 1998-2000 onward — coil pack, waste spark. No distributor, no cap, no rotor.

Open the bonnet and look for a distributor on the head. Thirty seconds now saves ordering the wrong tune-up kit.

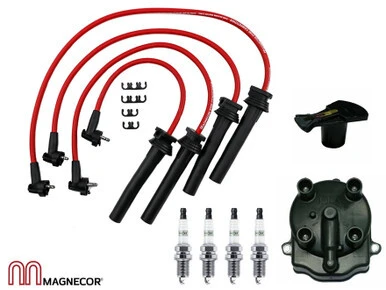

Tune-Up Kits

Ignition parts wear together, and replacing them one at a time means chasing the same misfire three times.

Pro Tune-Up Kits are the comprehensive overhaul, built around our Magnecor wire sets: the early distributor version and the 1998-2000 waste spark version.

Street Tune-Up Kits are the sensible daily-driver choice, built on NGK components: the Street kit and the waste spark version.

Which to buy? If the truck is stock and you want it running right, the Street kit is genuinely enough. The Pro kit earns its money on a modified engine, under boost, or where wire routing runs close to header heat.

Why the Pro Wires Cost What They Do

Our Pro sets use Magnecor KV85 competition 8.5mm cable. The conductor is a 2.5mm high-capacity metallic inductance EMI-suppressed core — stainless steel wire wound at 200 turns per inch over a ferromagnetic core. That carries spark energy with very low resistance while suppressing the interference that upsets an ECU.

That matters more on a fuel-injected engine than an old carburetted one. Cheap low-resistance wires can throw enough interference to confuse the engine management, producing faults nobody can trace.

Three versions: 1995-1997 distributor, 1998-2000 coil pack, and a cut-to-length HEI set for LC Pro Fuel installations. NGK sets for early and later applications.

Distributor Components

For 1995-1997: the complete distributor, cap, rotor and cap O-ring.

Replace the cap and rotor together. A new rotor in a worn cap simply moves the problem. The O-ring keeps moisture out — a cheap part that causes expensive-feeling misfires when it fails.

Spark Plug Tube Seals — the Leak That Looks Like Something Worse

When the spark plug tube seals harden, oil fills the spark plug wells and sits around the plug and boot. The symptom is a misfire that comes and goes, and people replace plugs, wires and coils chasing it.

If you pull a plug and the well is full of oil, this is your problem.

The wire clip keeps leads away from heat, and the distributor plug blanks the housing on converted engines.

Starting and Charging

The Denso starter is a genuine-quality replacement — worth knowing about, because a slow crank on a high-mileage Tacoma is more often the starter than the battery.

The high output alternator is the right upgrade once you have added load the factory unit was never sized for — a winch, a light bar, a compressor or electric fans. The usual sign is voltage sagging at idle with everything switched on.

Chasing a Misfire? Try This Order

  1. Pull a plug and look in the well. Oil means tube seals, not ignition.
  2. Plugs and wires — and if the wires are of unknown age, do them as a set.
  3. Cap and rotor if you have a distributor. Together.
  4. Coil pack if you have waste spark.
  5. Then fuel — see Fuel Injection. Measure pressure before replacing anything.

Send us the year and the symptoms and we will work it through with you.

!
