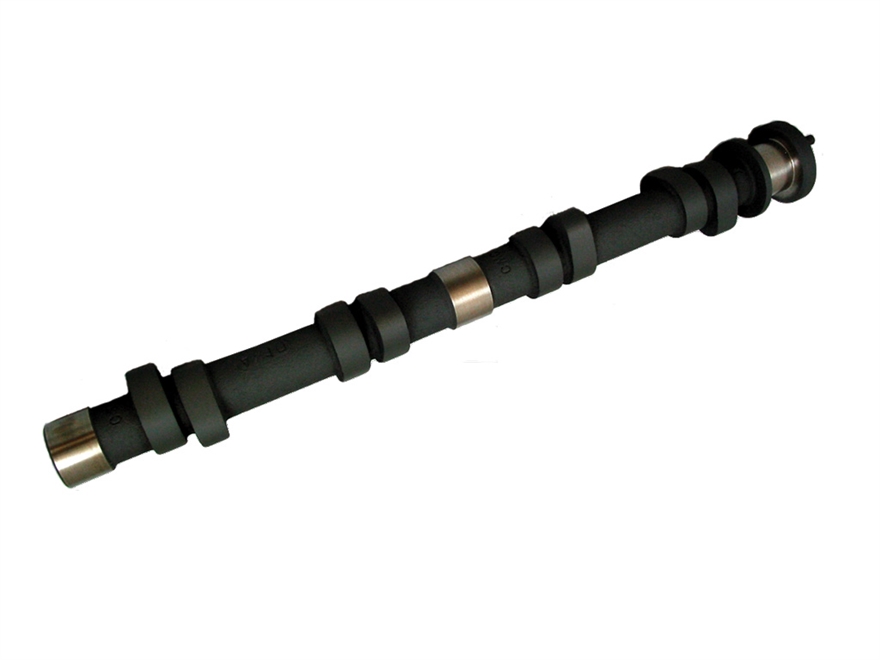

Pro Turbo Camshaft 20R/22R/RE/RTE (10+ lbs. Boost)
Pro Turbo Camshaft 20R/22R/RE/RTE

Our Price: $279.95

Part Number: 1022042


Acknowledgement*:
I acknowledge if I elect not to purchase rocker arms I am voiding my camshaft warranty.

Qty:
Details Fitment Instructions


Pro Turbo

The Pro Turbo cam is amazing for high boost (10+ lbs. of boost) turbocharged applications. It is engineered to optimize exhaust flow while driving the turbo for increased spool up speeds with less turbo lag. Due to its valve lift being over .450 and boost pressure of 10lbs or more we would recommend utilizing the dual valve spring and retainer kit to assist in proper valve control under high boost situations.

If you plan on running less than 10 lbs. of boost, see Part #: 1022027.

LC Engineering is constantly striving to improve both the quality and performance of our products. We test our camshafts on the street, race track and off-road. The results are an improved line of camshafts that offer a broader selection of grinds, increased horsepower, and higher quality. All LC Engineering Camshafts are ground on new billets and double heat treated for long life. Each has been designed for maximum torque and horsepower, specifically for the application. When comparing camshaft profiles, always reference the duration @ .050" valve lift.

20R/22R/RE Pro Turbo Camshaft

Pro Turbo (10+ lbs. Boost)
Throttle Body, Filter Charger

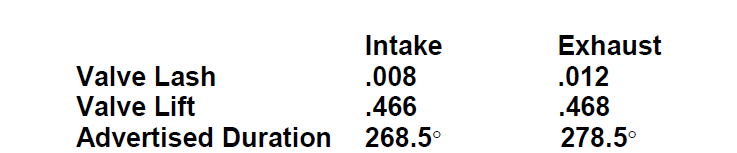

Intake Exhaust
Valve Lash .008 .012
Valve Lift .466 .468
Advertised Duration 268.5° 278.5°

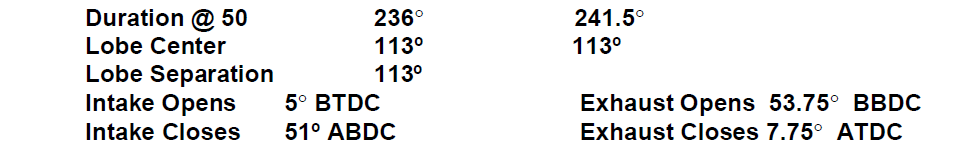

Duration @ .050" 236° 241.5°
Lobe Center 113° 113°
Lobe Separation 113°

Intake Opens 5º BTDC
Intake Closes 51º ABDC
Exhaust Opens 53.75º BBDC
Exhaust Closes 7.75º ATDC


NOTE: Will not work with the stock 22RE or 22RTE computer. It requires an aftermarket stand alone engine management system like one of these we offer:

  • Haltech Elite 550 22RE Fuel Management System w/ Sub Harness Kit, see Part #: 1020220.
  • Haltech Elite 550 22RE Fuel Management System w/ Complete Harness Kit, see Part #: 1020221.
  • Pro Fuel Injection Kit #3 Naturally Aspirated 4 Cylinder, see Part #: 1063026.

NOTE: Always check the valve to piston clearance and valve to valve clearance with this camshaft! Piston notching may be required if you do not have .100" of valve to piston clearance at full lift. Failure to install this cam with matched valve train components can cause engine damage. LC Engineering highly recommends using our Pro Camshaft Kit to allow proper spring retainer to guide clearance for any cam that has over .450" lift or in any application that requires a sustained RPM of 6,000 or higher.

  • Pro Camshaft Kit, see Part #: 1020000.

NOTE: LC Engineering will not warranty any cam damage if you do not purchase new Toyota rocker arms from LC Engineering, or a complete rocker arm assembly from LC Engineering at the same time as purchasing our camshaft.

  • Individual rocker arms, see Part #: 1023015.
  • Complete rocker assembly, see Part #: 1023018.

Buyer beware on reground rockers in the market. Regrinding the pad on the rocker can remove the heat treated portion of the pad making for a soft rocker. Rocker arms that are reground will not have the factory geometry of a stock rocker. To regrind a rocker will take care of the face surface but will do nothing to address the rocker shaft bore, a loose rocker bore will make adjustment difficult and will never be correct which is why we cannot warranty a camshaft unless new rockers are purchased with a camshaft.


This product should not be used in a manner that violates Federal EPA Laws.


Contact our Tech Support Line for further information at 928-855-6341.

Check out LCEngineering.com for New Products, Tech Articles, Specials & Monthly Newsletters!

Note: Images are for illustration purposes only. Images may not represent the product listed. Please contact customer service with any questions or concerns: 1-928-505-2501.
